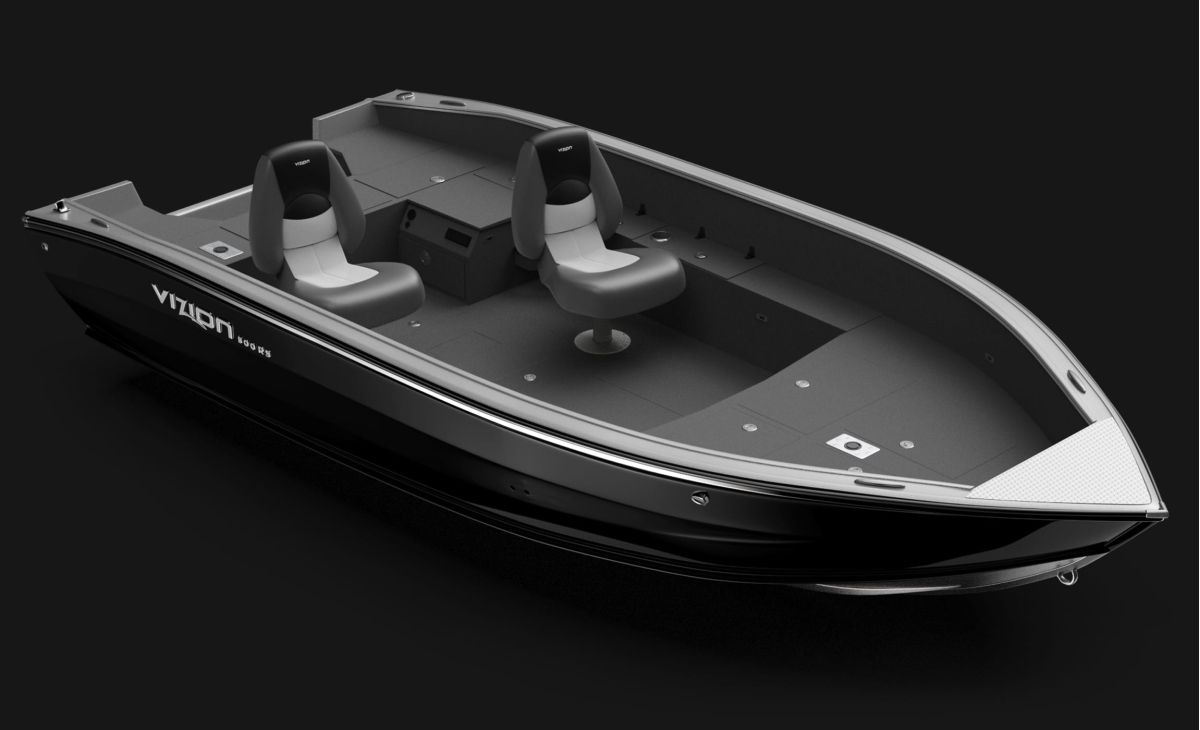

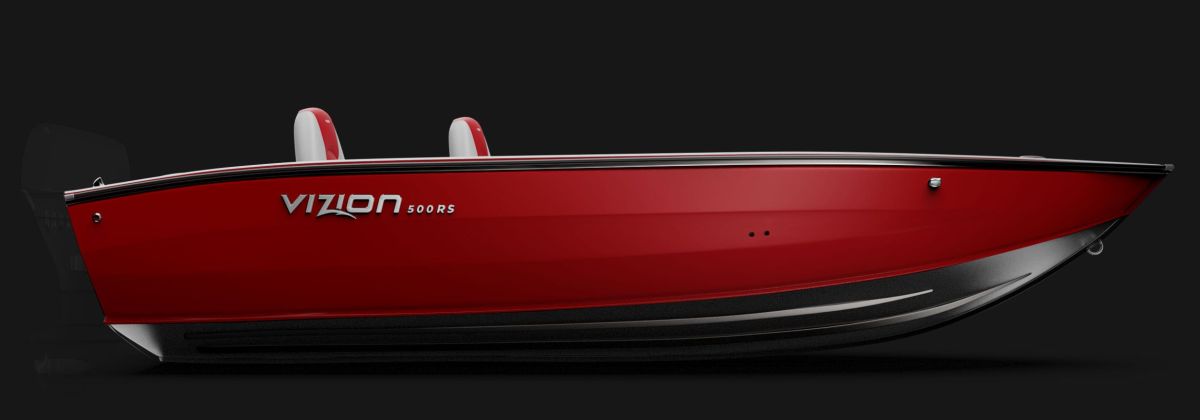

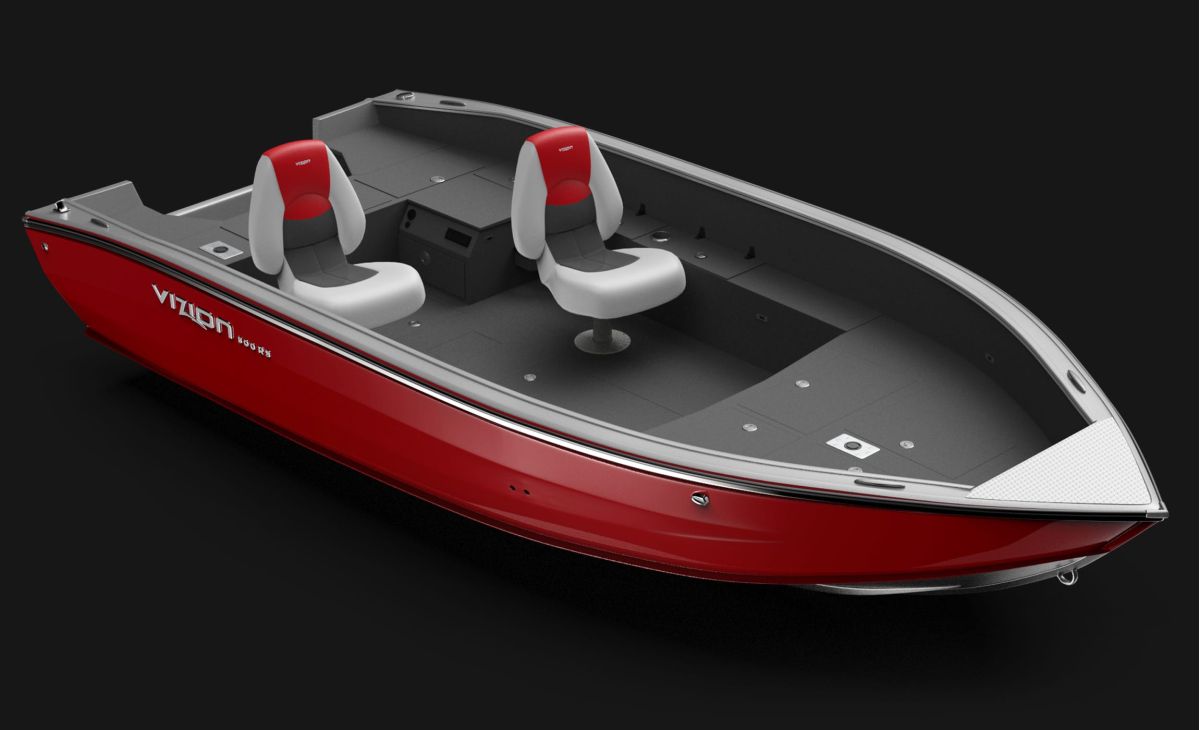

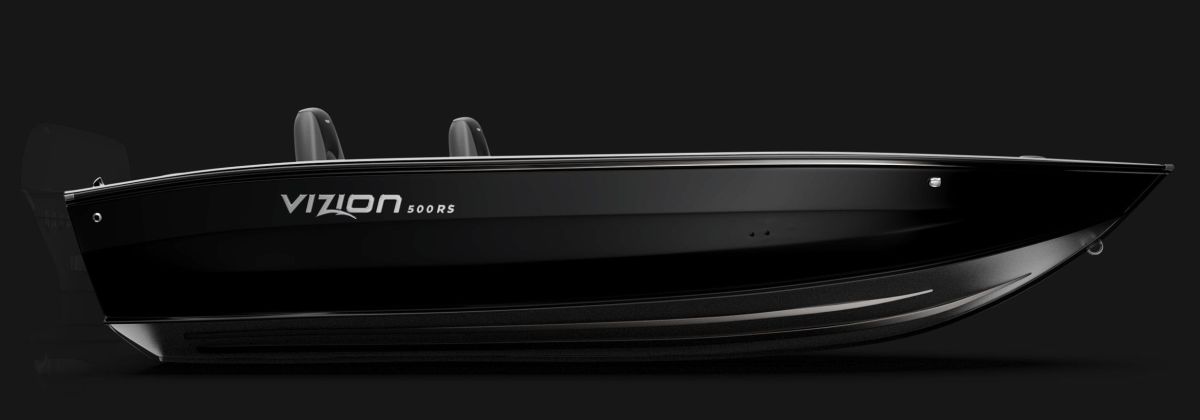

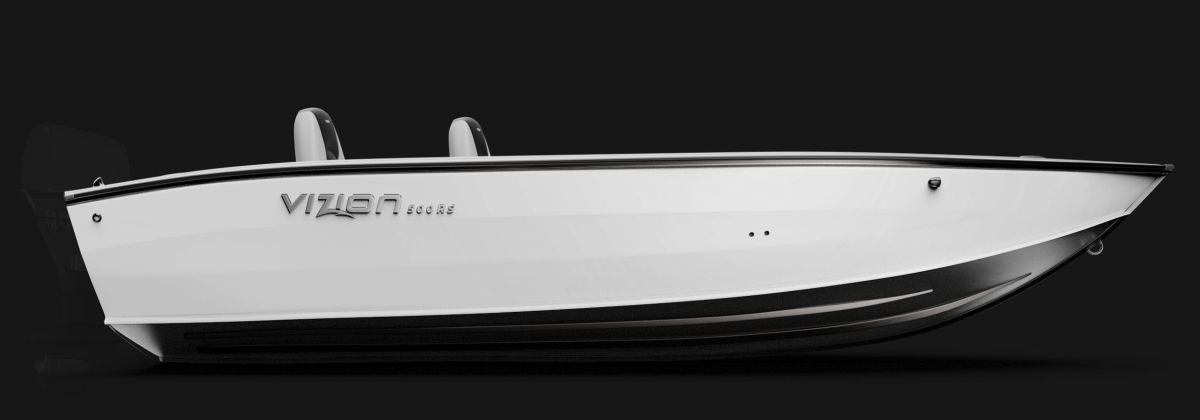

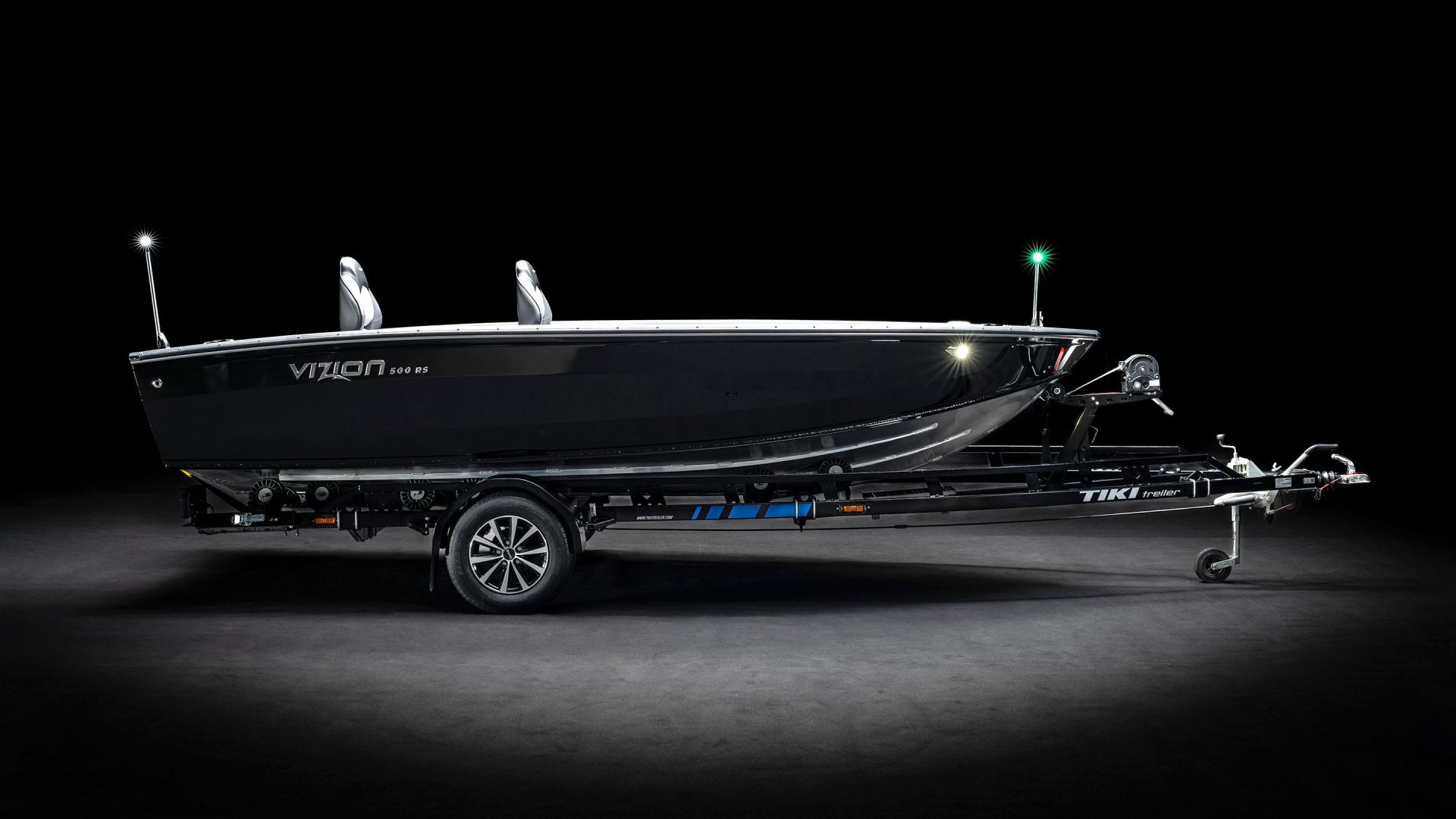

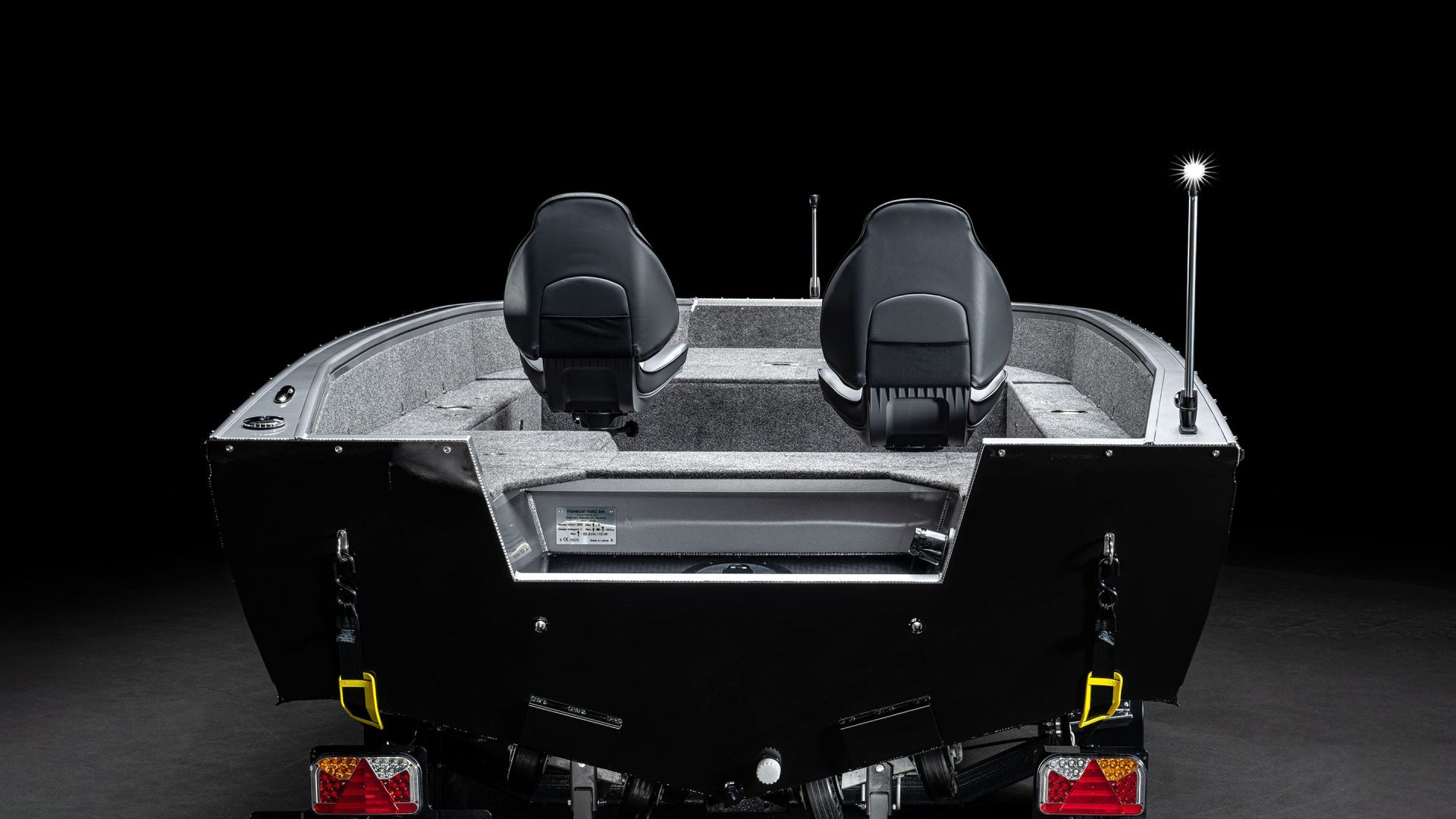

ALUMINUM MOTORBOAT

VIZION 500 RS

Gallery

Boat Configurator

Price: 22 200 €* (VAT incl.)

USER’S GUIDE

DECLARATION

CERTIFICATE

* The indicated price is valid in case of purchasing a product in Latvia from our warehouse.

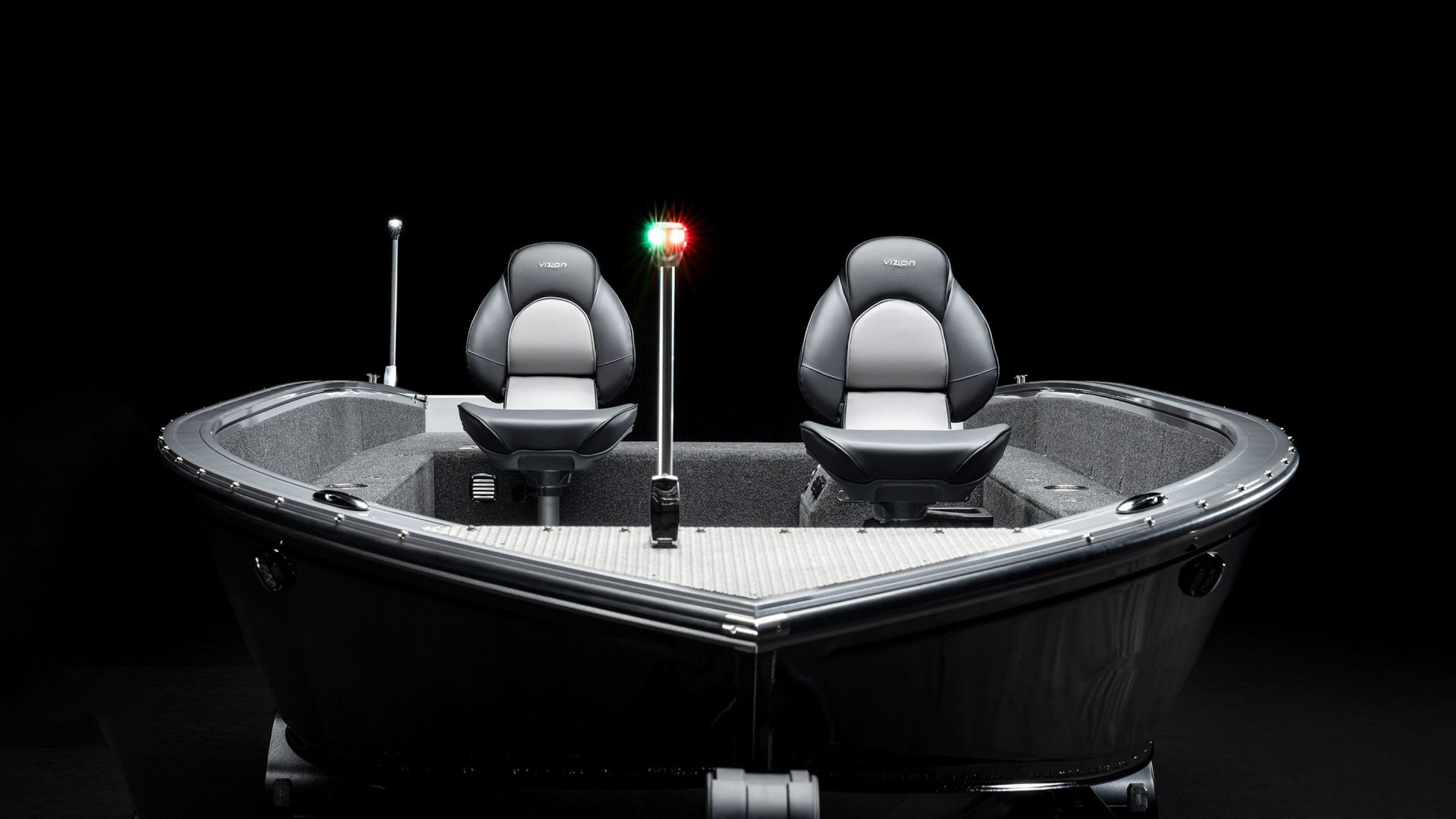

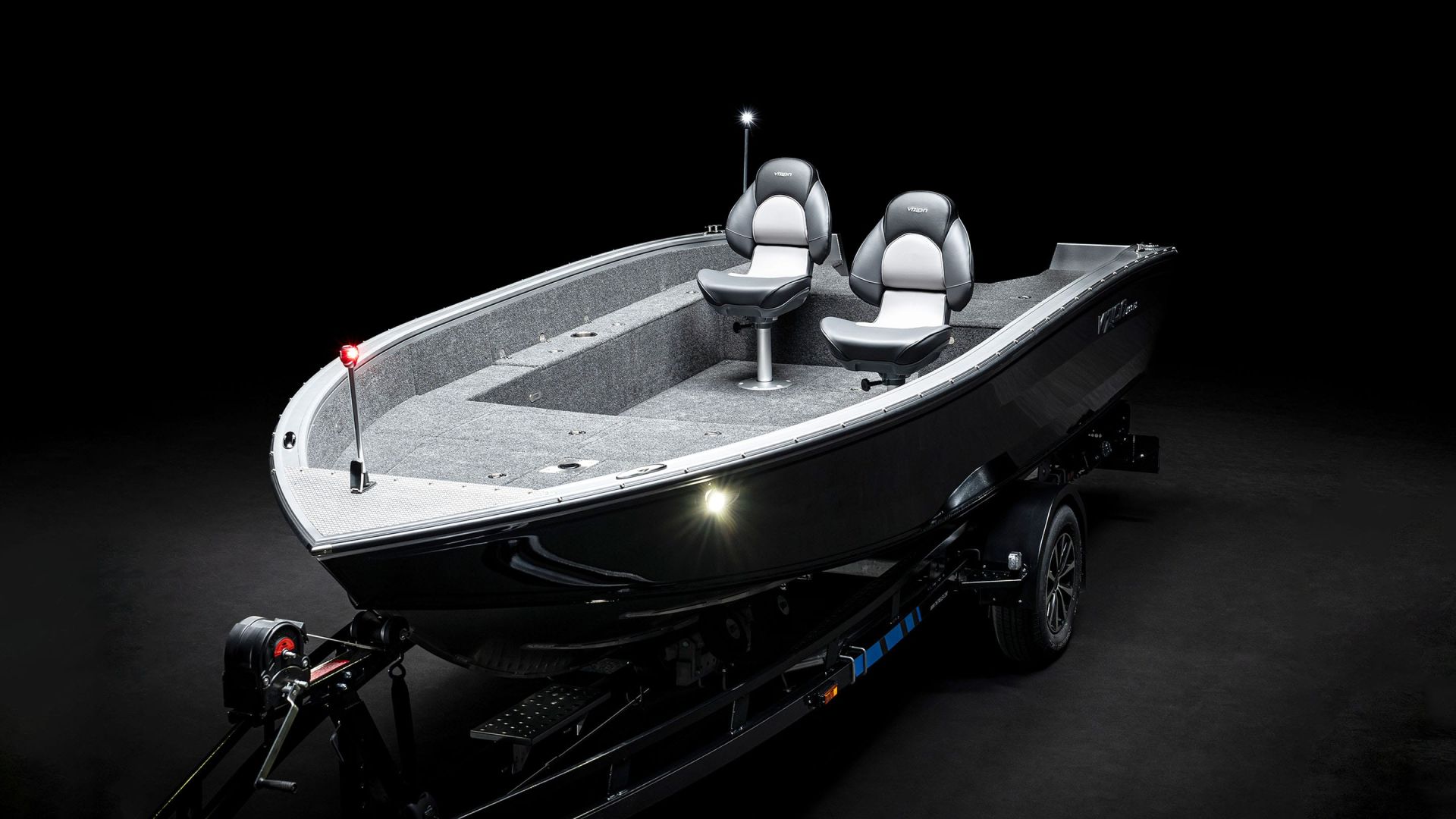

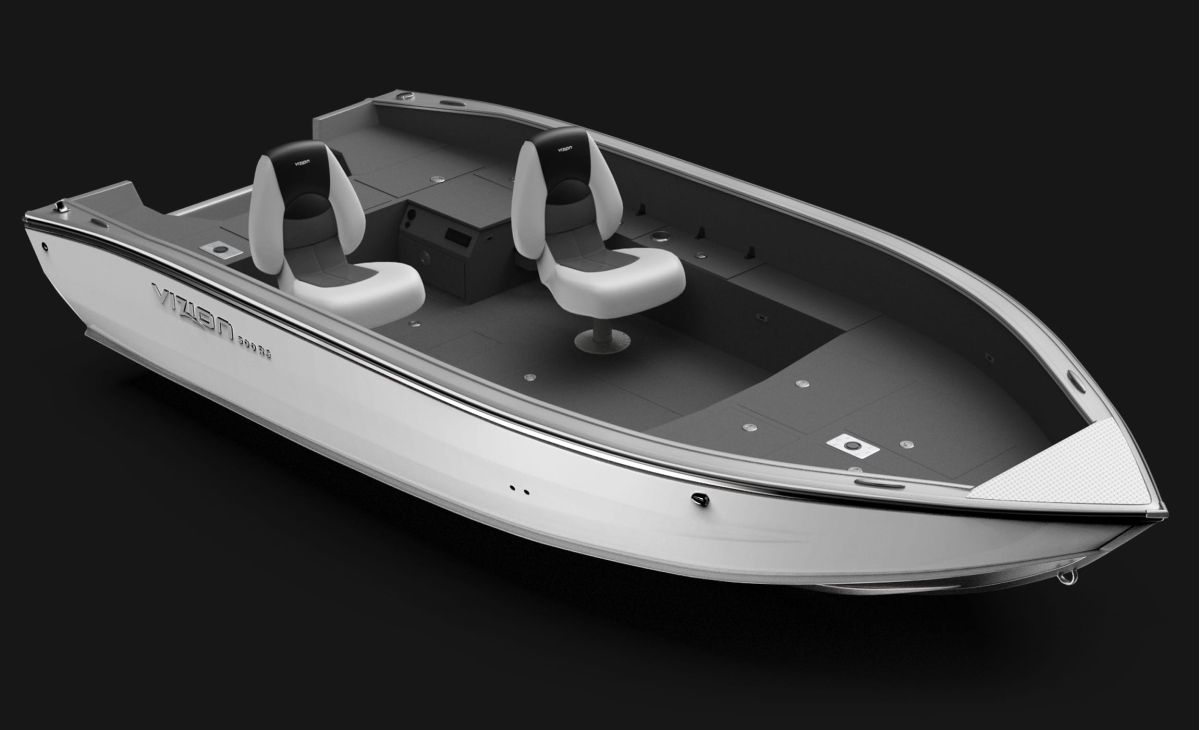

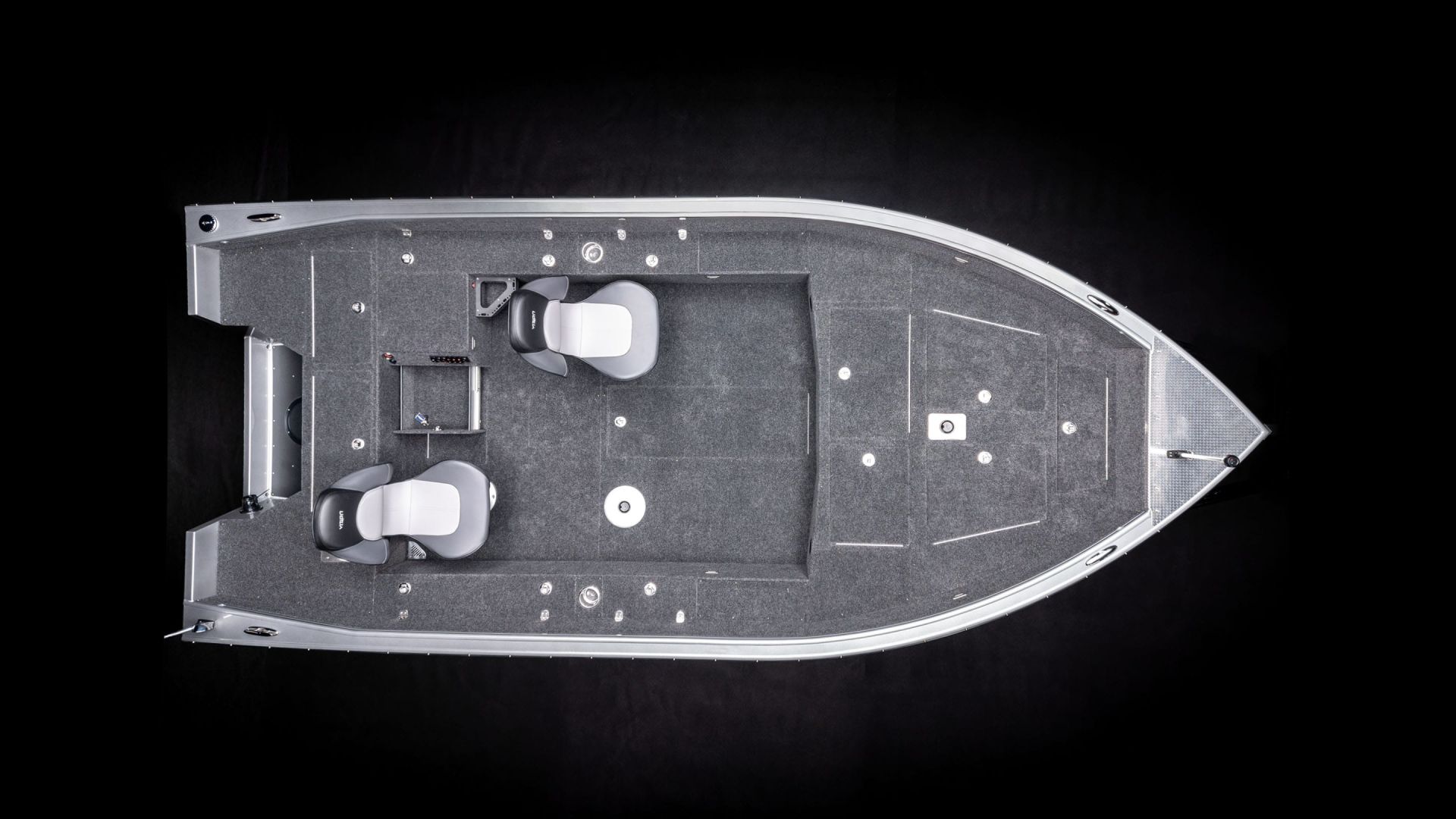

The VIZION 500RS is designed for tiller-steered boat enthusiasts. It’s perfect for those who value maximum space. Besides its generous space, it’s also a very fast boat with excellent performance, as it can be used with an engine up to 115 hp. Operating such a boat requires considerable experience and a responsible attitude. Like all VIZION boats, this model is designed for fishing. It has everything you need to make your hobby convenient and comfortable.

SPEED CHARACTERISTICS

Engine	YAMAHA F115
Propeller pitch	19	21	23
Speed km/h (1 pers., 30+80kg)	✕	80	84
Speed km/h (2 pers., 30+160kg)	✕	77	81
Speed km/h (3 pers., 30+240kg)	73	74	75
Speed km/h (4 pers., 30+320kg)	70	73	✕
Speed km/h (5 pers., 30+400kg)	66	70	✕

Optimal
Max. speed
Not recommended

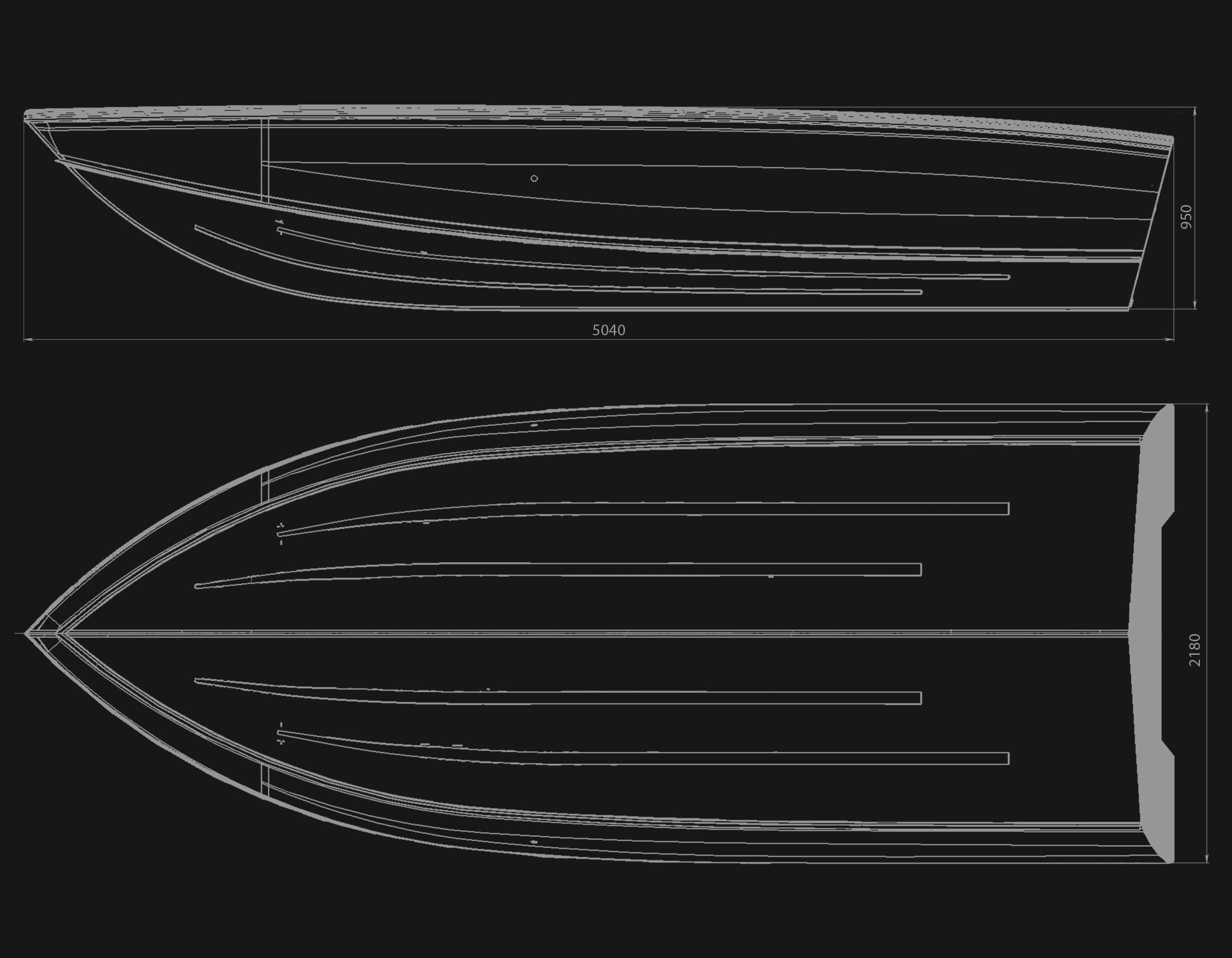

Technical data

CHARACTERISTIC	VALUE
Total length, mm	5040
Total width, mm	2180
Hull height in midsection, mm	950
Transom height, mm	510
Thickness – bilge/board, mm	4 / 3
Hull composite material	AL 5083 H111
Transom deadrise	16,5°
Load limit (weight of passengers and luggage), kg	500
Max people capacity	5
Max engine power, HP	115
Weight of rigged hull (excluding outboard motor), kg	590
Category	С

Basic equipment

Electric wiring
Wiring duct for additional equipment (сable hoist, electric motor)
2 sockets (12V)
USB socket for charging
4 retractable cleats, stainless
Trunk boxes with drainage system
Navigation lights
Parking light
Water pump
2 foldable seats
3 bases for seats of the cockpit
Base for a seat of the front and back part
2 removable stands for seats
2 seat WISE Blast Off
Hull coating
Battery switch
Center rod compartment for 5 spinnings 2,7 m

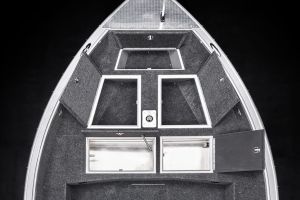

Aerated Livewell 110 l (2 circuits)
Marine carpeting or vinyl finishing

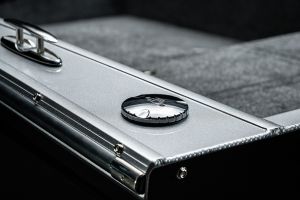

Fuel tank 100l (tank filler neck, fuel level sender and indicator)
LED lighting on the deck (4 lamps)

Finishing

The inneterior and exterior surfaces of the boat VIZION 500RS are covered with marine carpeting VENUS 437 SPACE. This carpeting was made exclusively for water transport exterior. It is moisture-, ultraviolet-resistant, other aggressive environment does not affect it. Easy to wash, dries quickly, keeps its form for a long time. Any stains can be easily washed off at the car wash with the help of high-pressure pulser. Decks can be finished with marine vinyl MariDeck if the client chooses so.

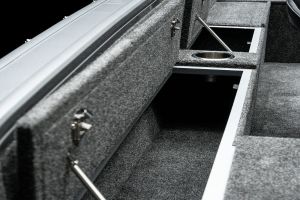

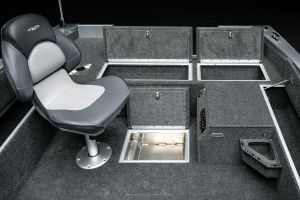

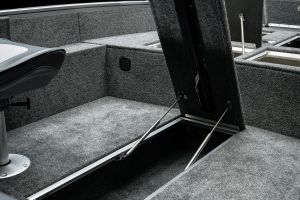

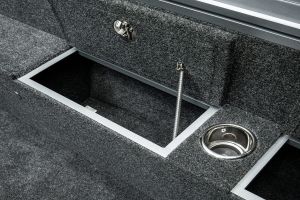

Compartment arrangement

The interior space of all the compartments in the boat VIZION 500 are finished with marine carpeting VENUS 437 SPACE. Drainage system is installed for each compartment so that your possessions are always dry.
