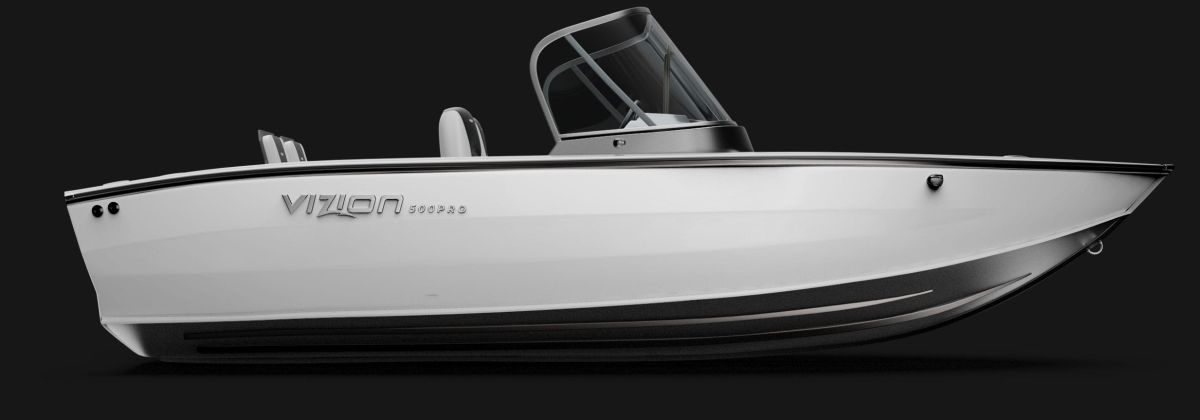

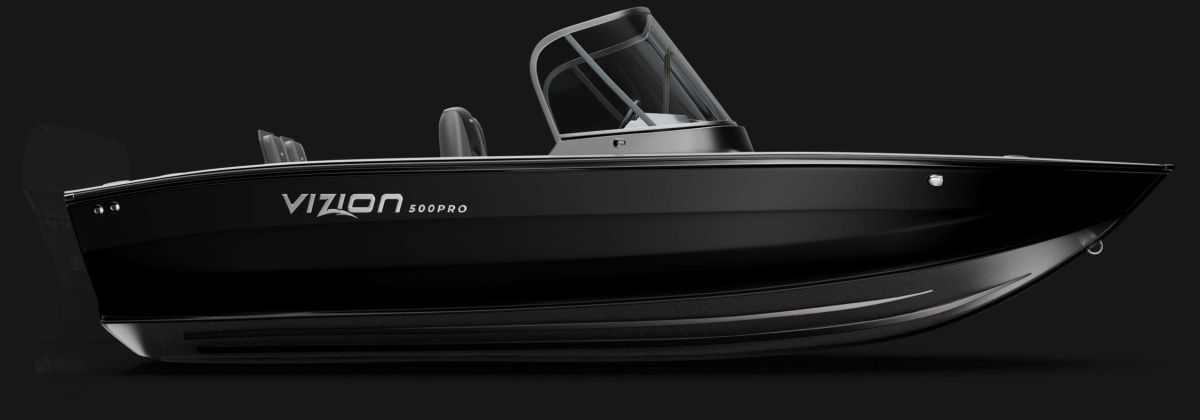

ALUMINUM MOTORBOAT

VIZION 500 PRO

Gallery

Boat Configurator

Price: 27 500 €* (VAT incl.)

USER’S GUIDE

DECLARATION

CERTIFICATE

* The indicated price is valid in case of purchasing a product in Latvia from our warehouse.

Introducing the VIZION 500PRO model. We have made many changes to get the perfect boat in this size. Transom plates integrated into the hull have improved the running characteristics. The spinning compartment now holds 10 spinning rods. Below us is a compartment for batteries. The cockpit has new compartments and organizers. The aerator is now located under the rear seats and has become even more convenient to use. As always, we tried to take into account all the wishes of our customers and make a model that will be the perfect choice for the most demanding anglers.

SPEED CHARACTERISTICS

Engine	115 HP
Propeller pitch	19	21	23
Speed km/h (1 pers., 30+80kg)	✕	80	84
Speed km/h (2 pers., 30+160kg)	✕	77	81
Speed km/h (3 pers., 30+240kg)	73	74	75
Speed km/h (4 pers., 30+320kg)	70	73	✕
Speed km/h (5 pers., 30+400kg)	66	70	✕

Optimal
Max. speed
Not recommended

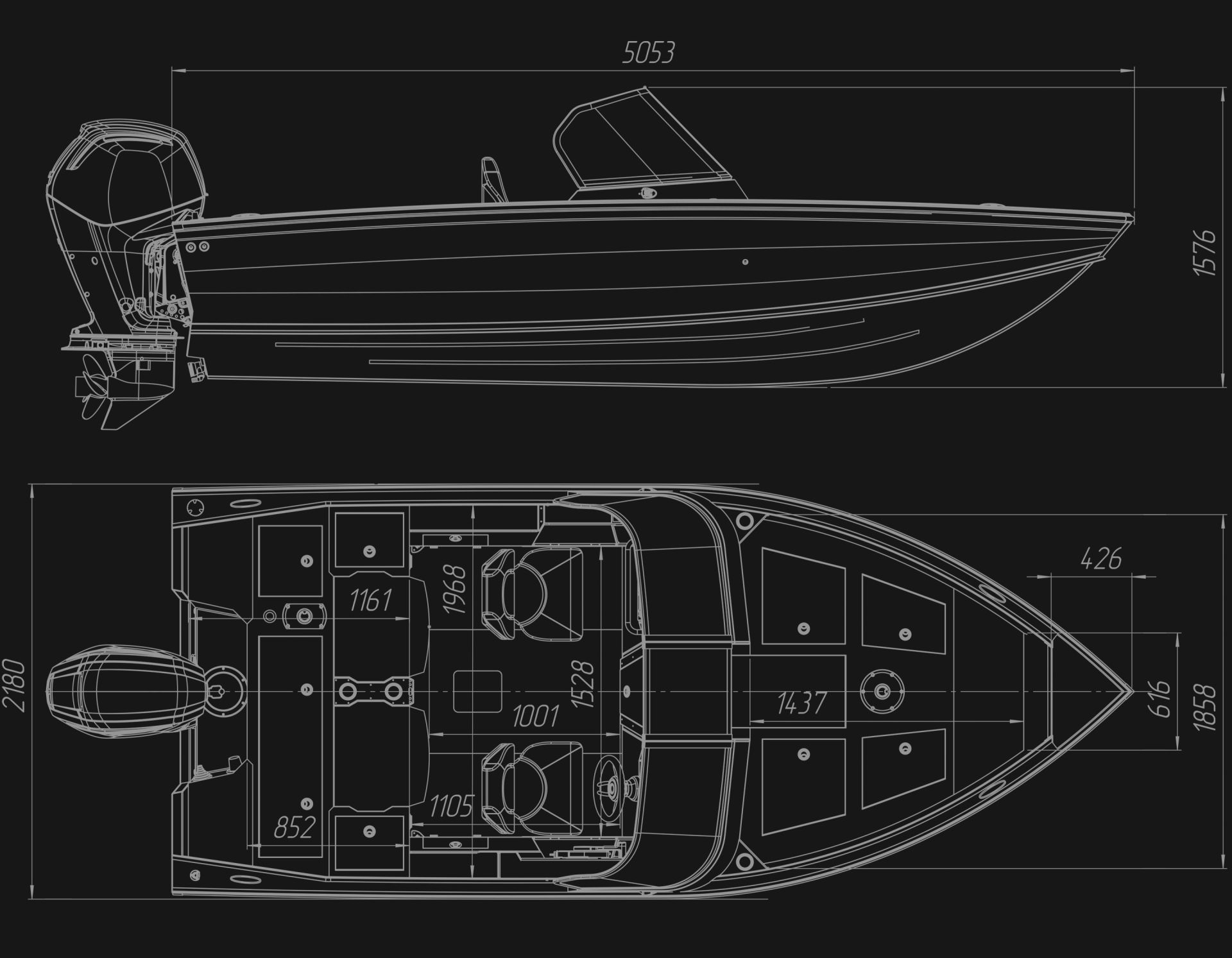

Technical data

CHARACTERISTIC	VALUE
Total length, mm	5040
Total width, mm	2180
Hull height in midsection, mm	950
Transom height, mm	510
Thickness – bilge/board, mm	4 / 3
Hull composite material	AL 5083 H111
Transom deadrise	16,5°
Load limit (weight of passengers and luggage), kg	500
Max people capacity	5
Max engine power, HP	115
Weight of rigged hull (excluding outboard motor), kg	650
Category	С

Basic equipment

Steerage (gear, steering rope, wheel)
Electric wiring
Wiring duct for additional equipment (сable hoist, electric motor)
2 sockets (12V)
USB socket for charging (in the glove box)

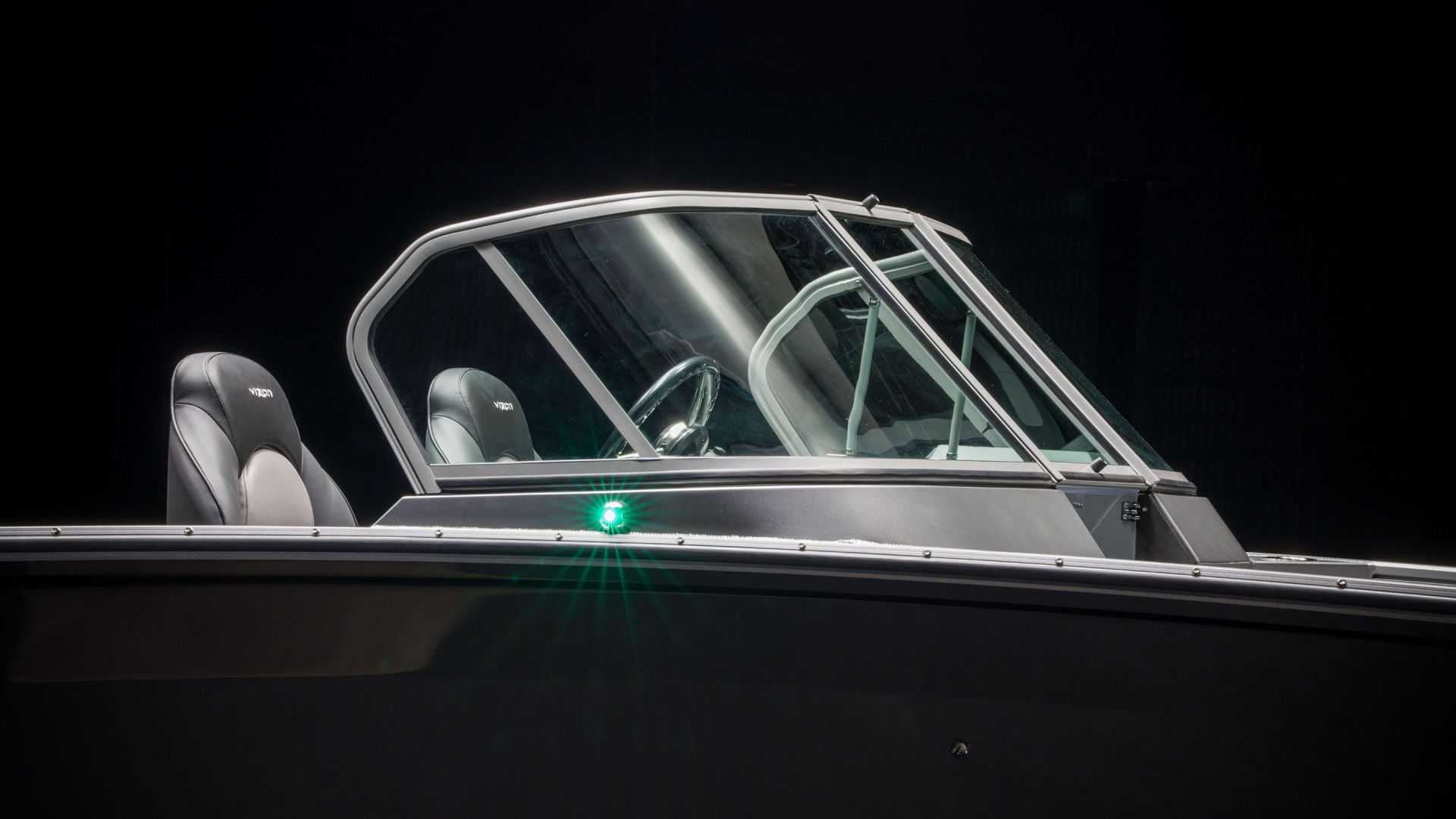

Two glassed-in consoles with a folding door and a gate between them (Tempered glass)
4 retractable cleats, stainless
Trunk boxes with drainage system
Navigation lights
Parking light
Water pump
2 foldable seats
2 bases for seats of the cockpit
Base for a seat of the front and back part
2 removable stands for seats
2 seat WISE Blast Off
Hull coating
Battery switch
Glove box
Center rod compartment for 10 spinnings 2,4-2,5 m
Aerated Livewell 100 l (2 circuits)
Marine carpeting or vinyl finishing
Fuel tank 100l (tank filler neck, fuel level sender and indicator)
LED lighting on the deck (4 lamps)
LED lighting in the glove box

Vizion 500 PRO video presentation

Finishing

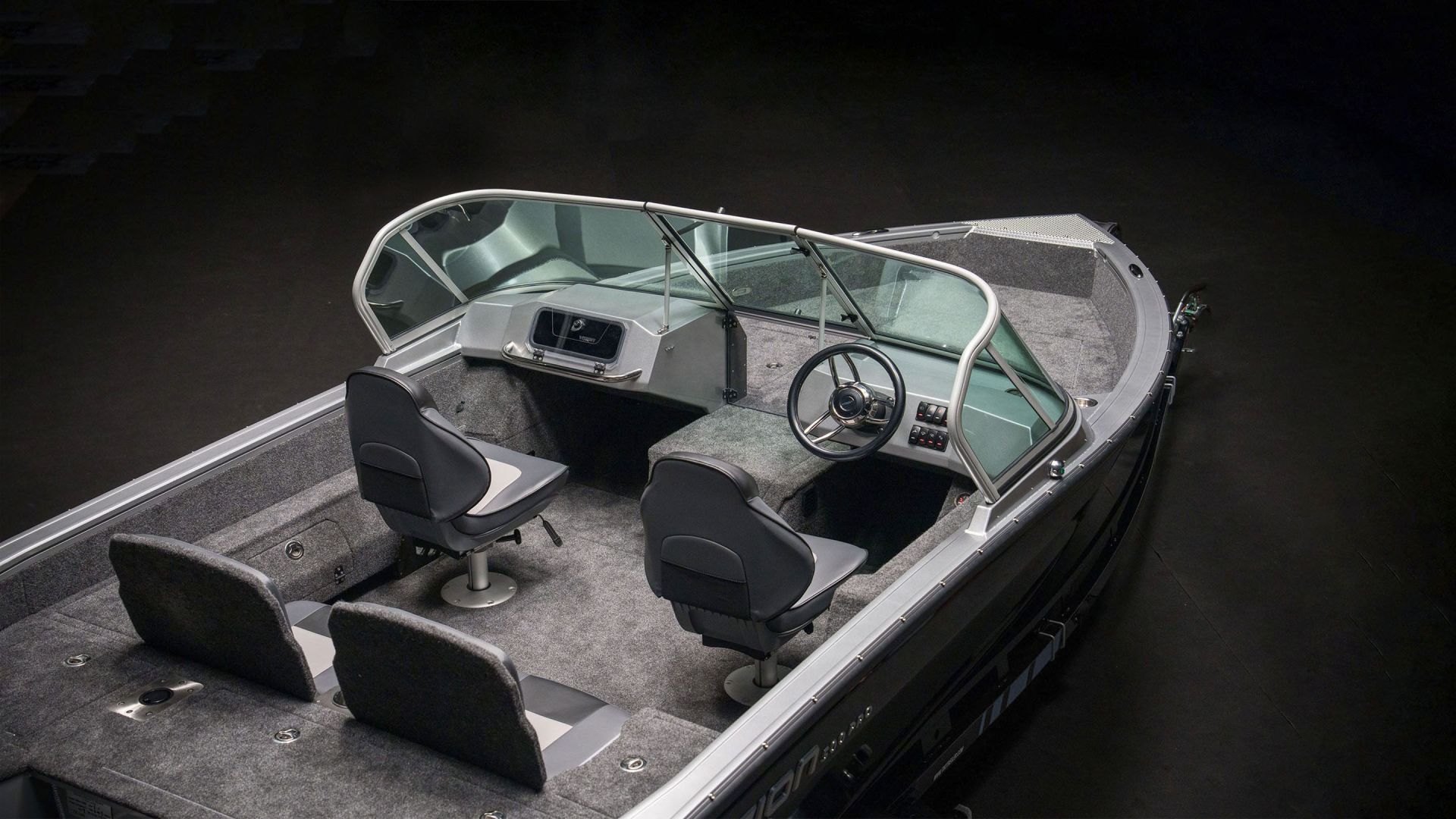

The inneterior and exterior surfaces of the boat VIZION 500 are covered with marine carpeting VENUS 437 SPACE. This carpeting was made exclusively for water transport exterior. It is moisture-, ultraviolet-resistant, other aggressive environment does not affect it. Easy to wash, dries quickly, keeps its form for a long time. Any stains can be easily washed off at the car wash with the help of high-pressure pulser. Decks can be finished with marine vinyl MariDeck if the client chooses so.

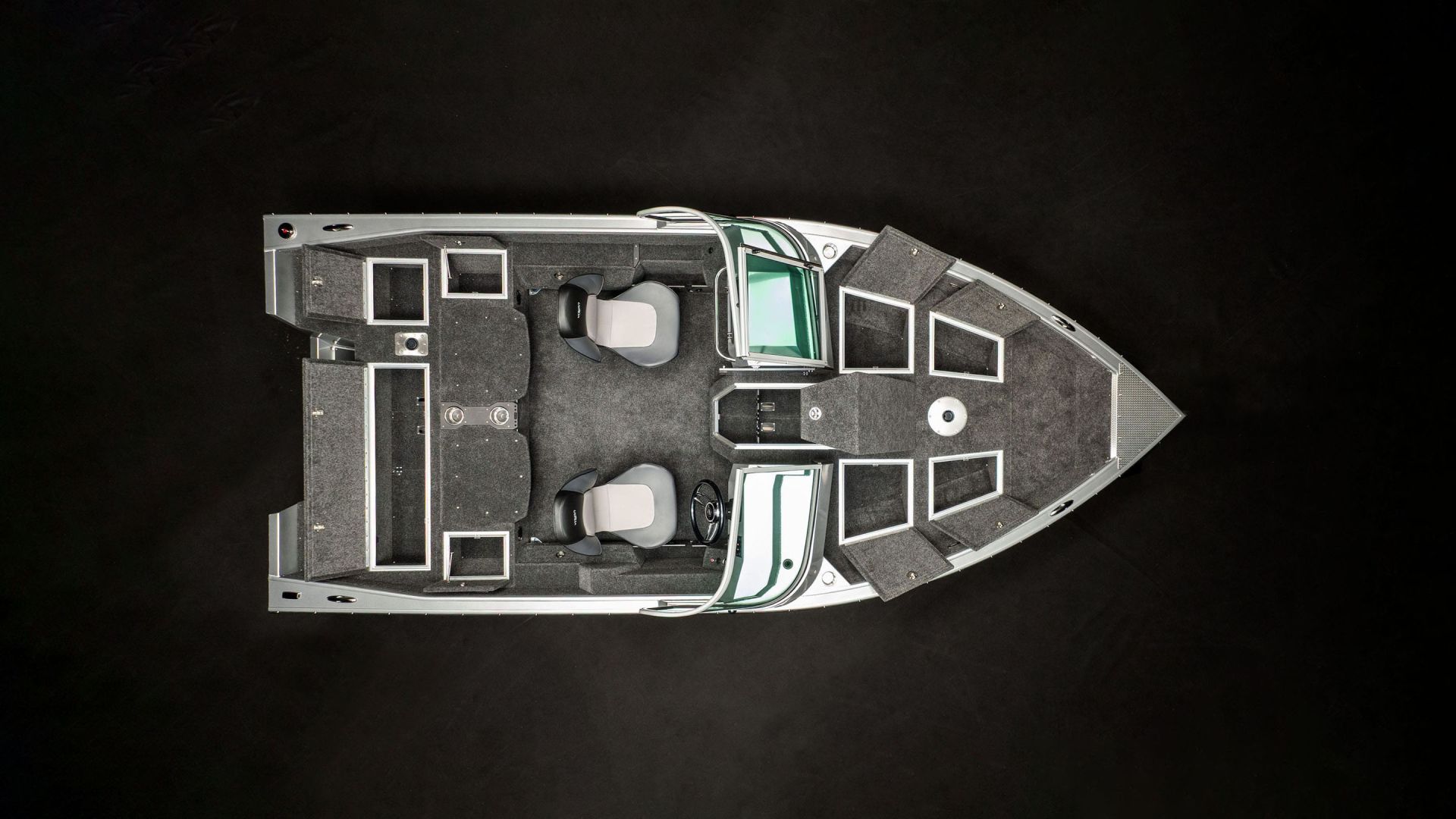

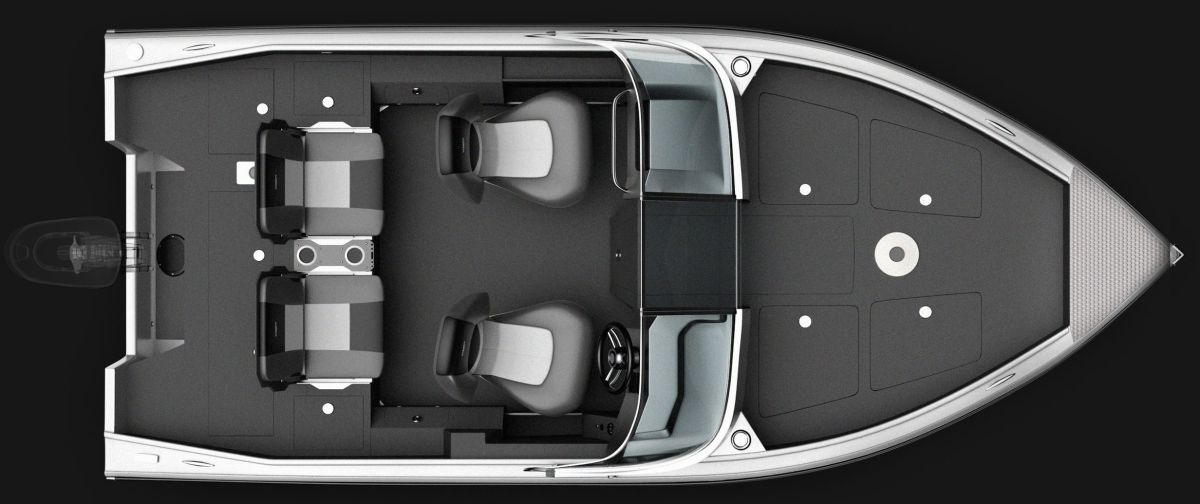

Compartment arrangement

The interior space of all the compartments in the boat VIZION 500 are finished with marine carpeting VENUS 437 SPACE. Drainage system is installed for each compartment so that your possessions are always dry.
