ALUMINUM MOTORBOAT

VIZION 470s

Gallery

Boat Configurator

Price: 18 100 €* (VAT incl.)

USER’S GUIDE

DECLARATION

CERTIFICATE

* The indicated price is valid in case of purchasing a product in Latvia from our warehouse.

The aluminium motorboat VIZON 470s is a lightweight version of the VIZON 470 model. It is the weight of the boat that is the determining factor when choosing a motor. To reduce this parameter, we used thinner aluminium, made changes in the design of the hull, minimized the use of such heavy materials as plywood, vinyl and carpet. As a result of these changes new model VIZON 470s was born. The main advantage of this model is the possibility of using it in combination with a 50 hp engine. The VIZON 470s model was no exception and retained all the advantages of the VIZON brand. This is an absolute build quality, the highest quality materials and components, great design, reliability and safety!

SPEED CHARACTERISTICS

Engine	YAMAHA F60
Propeller pitch	12	13	14	15
Speed km/h (1 pers., 30+80kg)	✕	58	61	65
Speed km/h (2 pers., 30+160kg)	✕	56	55	✕
Speed km/h (3 pers., 30+240kg)	48	52	✕	✕
Speed km/h (4 pers., 30+320kg)	45	49	✕	✕

Optimal
Max. speed
Not recommended

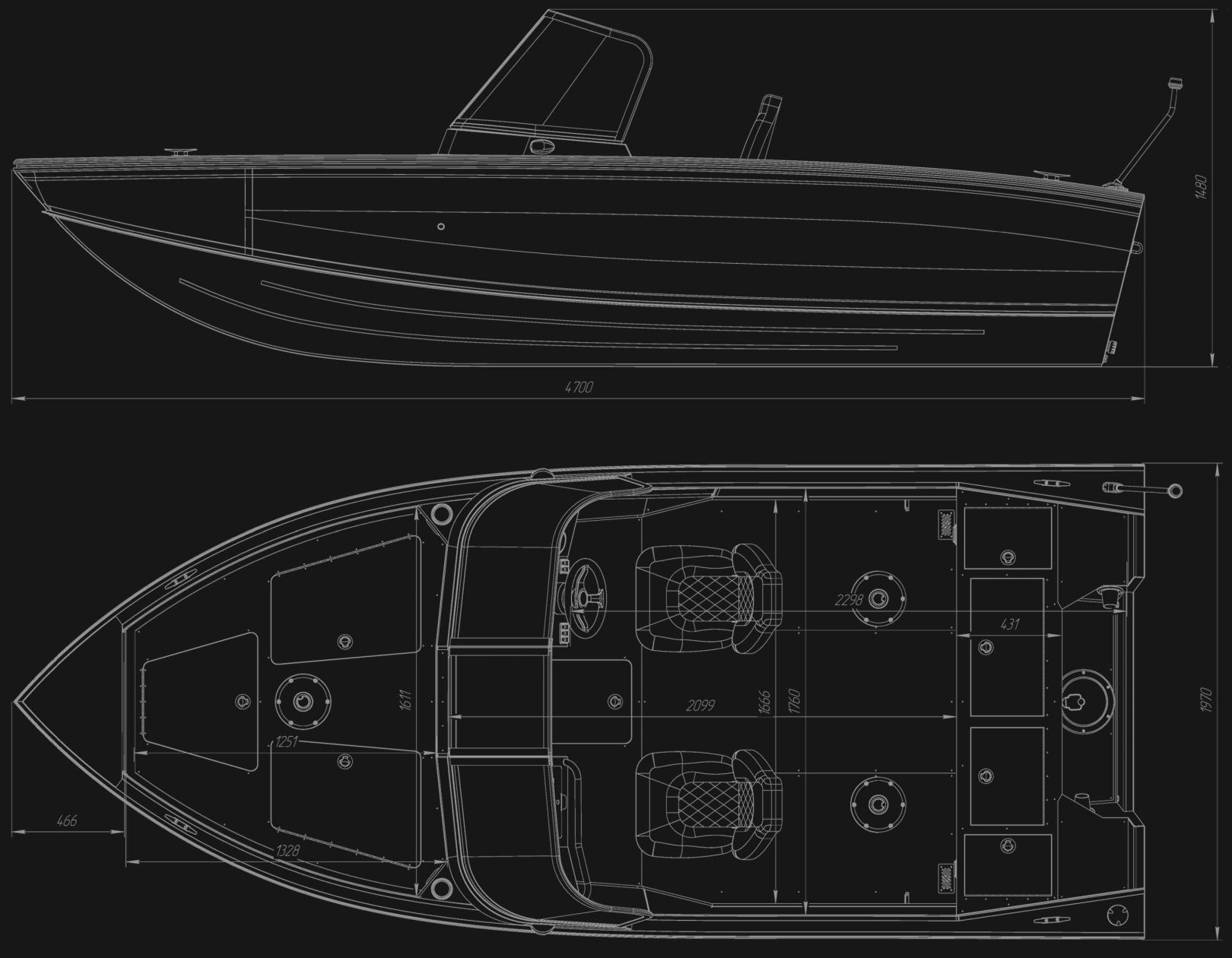

Technical data

CHARACTERISTIC	VALUE
Total length, mm	4700
Total width, mm	1950
Hull height in midsection, mm	850
Transom height, mm	510
Thickness – bilge/board, mm	3 / 2
Hull composite material	AL 5083 H111
Transom deadrise	14°
Load limit (weight of passengers and luggage), kg	450
Max people capacity	4
Max engine power, HP	70
Weight of rigged hull (excluding outboard motor), kg	from 420
Category	С

Basic equipment

Steerage (gear, steering rope, wheel)
Electric wiring
Wiring duct for additional equipment (сable hoist, electric motor)
2 sockets (12V)
USB socket for charging (in the glove box)
Two glassed-in consoles with a folding door and a gate between them (Plexiglass)
4 retractable cleats, stainless
Trunk boxes with drainage system
Navigation lights
Parking light
Water pump
2 bases for seats of the cockpit
Base for a seat of the front part
2 removable stands for seats
2 seat WISE Blast Off
Hull coating
Battery switch
Glove box
4 spinning rod compartments 2,7 m
Aerated Livewell 80 l
Marine carpeting or vinyl finishing
Fuel tank 60 l (tank filler neck, fuel level sender and indicator)

Option equipment

Equipment	Price
Tempered glass	+ 1200 €

Finishing

The inneterior and exterior surfaces of the boat VIZION 470s are covered with marine carpeting VENUS 437 SPACE. This carpeting was made exclusively for water transport exterior. It is moisture-, ultraviolet-resistant, other aggressive environment does not affect it. Easy to wash, dries quickly, keeps its form for a long time. Any stains can be easily washed off at the car wash with the help of high-pressure pulser. Decks can be finished with marine vinyl MariDeck if the client chooses so.

Compartment arrangement

The interior space of all the compartments in the boat VIZION 470s are finished with marine carpeting VENUS 437 SPACE. Drainage system is installed for each compartment so that your possessions are always dry.
